L1 Exceptions

Per-sheet walkthrough — L1 Reconciliation Dashboard.

What the sheet shows

The 9am scan — did anything break overnight. UNION ALL across the 12 L1 invariant matviews, in three classes:

  • balance / numeric (6) — l2_drift, l2_ledger_drift, l2_overdraft, l2_limit_breach, l2_expected_eod_balance_breach, l2_balance_cadence_gap
  • chain / cardinality (4) — l2_chain_parent_disagreement, l2_xor_group_violation, l2_fan_in_disagreement, l2_multi_xor_violation
  • time / stuck (2) — l2_stuck_pending, l2_stuck_unbundled

Materialized into l2_l1_exceptions at refresh time, so each visual reads one small precomputed table instead of re-running the 12-branch UNION live. Date narrowing happens at the dataset SQL — the matview holds EVERY day, the picker window (Date From / Date To) pushes down to the rows you asked for (NOT a fixed latest-day pre-filter).

Magnitude — "how bad is it" — lands in one of two columns depending on the branch:

  • magnitude_amount (dollars) for the money branches: ABS(drift) for drift / ledger_drift / expected_eod_balance_breach, ABS(stored_balance) for overdraft (how far below zero), outbound_total - cap for limit_breach (overflow over the cap).
  • magnitude_count (an integer) for the cardinality branches (chain / XOR / fan-in / multi-XOR).

Exactly one is non-NULL per row, so a sort-by-magnitude reads consistently across check kinds.

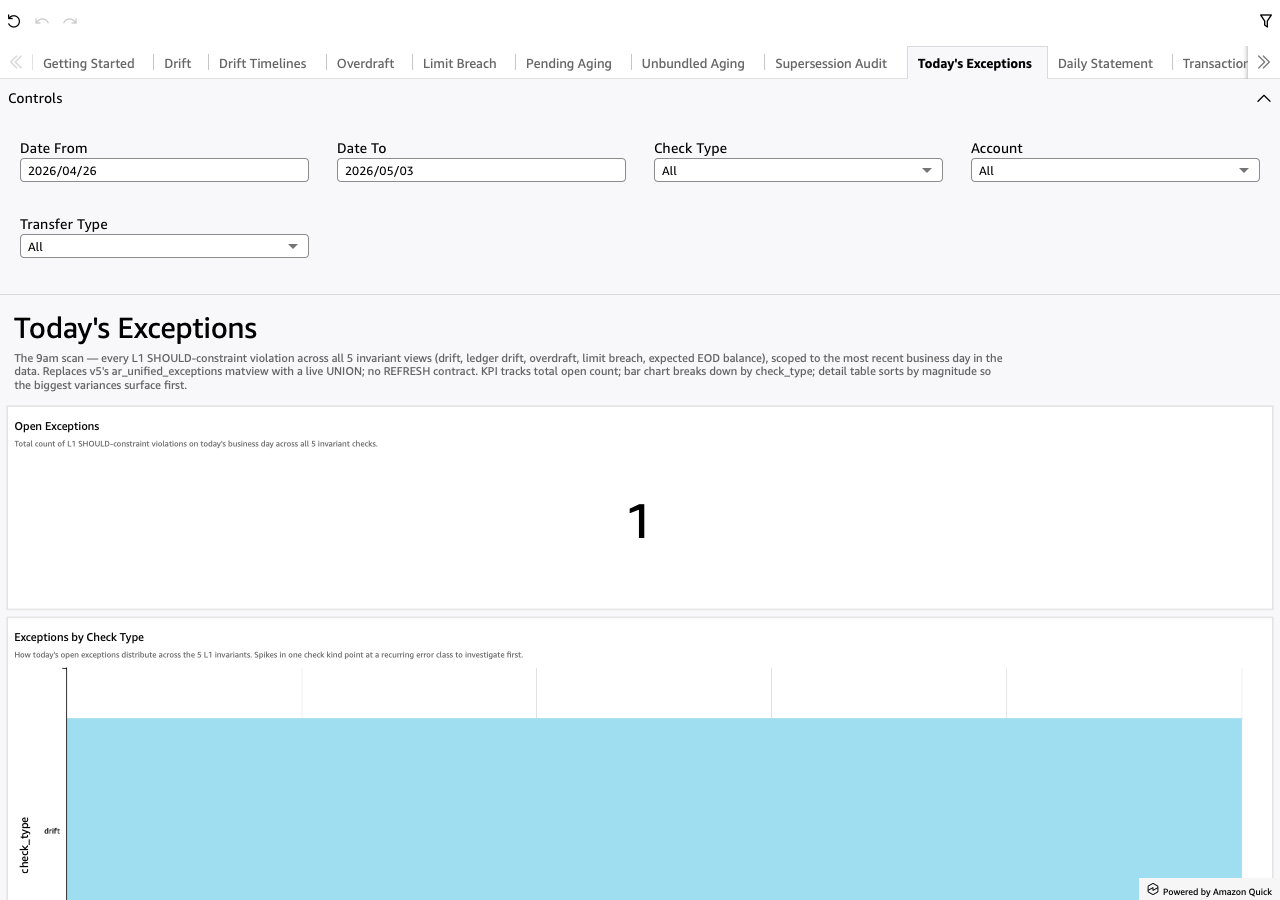

Screenshot

L1 Exceptions

When to use it

First sheet to open every morning. The KPI answers the only 9am question — did anything break overnight. From there the bar chart shows the error-class shape, and the detail table sorts biggest-first so the loudest violations sit at the top.

See it live

Visuals

  • Open Exceptions (KPI) — total count of L1 SHOULD-constraint violations in the picker's date window, across all 12 invariant checks. Wider window → larger count.
  • Exceptions by Check Type (BarChart, horizontal) — count per check kind across the 12 invariants. LOG-scale axis (one kind, typically stuck_unbundled, otherwise swamps the rest at ~5000 vs near-zero). Spikes in one kind point at a recurring error class to investigate first.
  • Exception Detail (Table) — one row per violation, sorted by magnitude_amount DESC so the biggest dollar variances are the top rows. Transfer-keyed checks carry a magnitude_count instead and sort below. rail_name is NULL on the branches that don't carry it; transfer_id is NULL on the money branches; account_parent_role is NULL on branches that carry no parent — all three display blank.
  • Institution Context (TextBox) — footer with the L2 instance's top-level description. Mirrors the Getting Started welcome at the bottom of the unified-view landing page.

Drills

  • Left-click the account → narrows the Drift sheet to that account (pL1DriftAccount parameter — the same pushdown the Drift sheet's Account dropdown uses). Per the CLAUDE.md drill-direction convention, a left-click moves you LEFT — back toward the per-invariant source of the violation.
  • Right-click → "View Daily Statement for this account-day" → opens Daily Statement filtered to the clicked account + business day for the per-leg walk. A right-click moves you RIGHT — deeper into the investigation.

Filters

  • Date From / Date To — universal date-range pickers (scoped on business_day).
  • Check Type — multi-select dropdown over the 12 check kinds.
  • Account — multi-select dropdown over account_id.
  • Transfer Type — multi-select dropdown over rail_name.
